How to calculate buck converter efficiency. A power converters efficiency AC-DC or DC-DC is determined by comparing its input power to its output power. Analysis of Buck Converter Efficiency. However not enough attention has been paid to predict efficiency at Pulse Frequency Modulation PFM mode which is widely used at light loads in portable applications to decrease loss and prolong talk time.

Also accurate results can be found by this. There are three types of switching regulators available. How to calculate efficiency of the dc-dc converter.

Calculate the efficiency at VO 33 V. The synchronous buck circuit is wildly used to provide non-isolated power for low voltage and high current supply to system chip. The diode losses represent almost one half of the total losses.

Here we will discuss different aspects of Buck converter and how to improve its efficiency. Several losses in buck converter must be calculated to estimate the efficiency and losses. In the demo models Buck Converter with Thermal Model the efficiency has been calculated just by 1-PlossPin where Ploss is just the switch conduction and switching loss calculated in the thermal domain.

The Greek symbol Eta is usually used to represent. More precisely the efficiency of the converter is calculated by dividing the output power Pout by its input power Pin. Efficiency of Buck Converter Switching regulators are known as being highly efficient power sources.

Synchronous buck converters are very popular in industry today and provide high efficiency solutions for a wide range of applications. To realize the power loss of synchronous buck converter and to improve efficiency is important for power designer. Efficiency calculations for power converters.

Efficiency prediction for a buck converter at Pulse Width Modulation PWM mode is well analyzed. Use either an estimated factor eg 90 which is not unrealistic for a buck converter worst-case efficiency or see the Typical Characteristics section of the data sheet of the selected converter. In particular in the converter topologies like buck boost flyback.

How do you calculate the efficiency of a boost converter. So this provides a quick and easy method to calculate the efficiency of a buck-boost converter at different conditions other than what is given by the standard tables and characteristics in datasheets. Customers will estimate the efficiency of the buck converter when they choose a controller IC.

You measured the feedback current which should be very small. This application note explains power loss factors and methods for calculating them. The efficiency can be calculated as below wihout the loss caused by driver and controller a Pin VinIin average b Pout.

This engineering essentials on buck converter efficiency presents the relevant equations needed to estimate. This application note gives the formulas to calculate the power stage of a synchronous buck operating in continuous conduction mode. Jingdong Chen Staff Application Engineer National.

105 wattsEfficiency 10w 10w 105w 905 This Buck converter design example has a calculated efficiency of 905. The converter is a simple buck DCDC converter with a synchronous rectifier or a diode both configurations possible. If the English dude had a clue he would realize his buck convert is dissipating over 5 watts.

4 Results Table 1 shows the efficiency measured at VO 5 V and different output currents on the TPS54620 synchronous buck converter. Put an 11 ohm and a 22 ohm resistor in series as a load and measure THAT output. Then trigger them simultaneously youll be able to compare the results to determine the efficiency assuming the input and output voltages are holding constant.

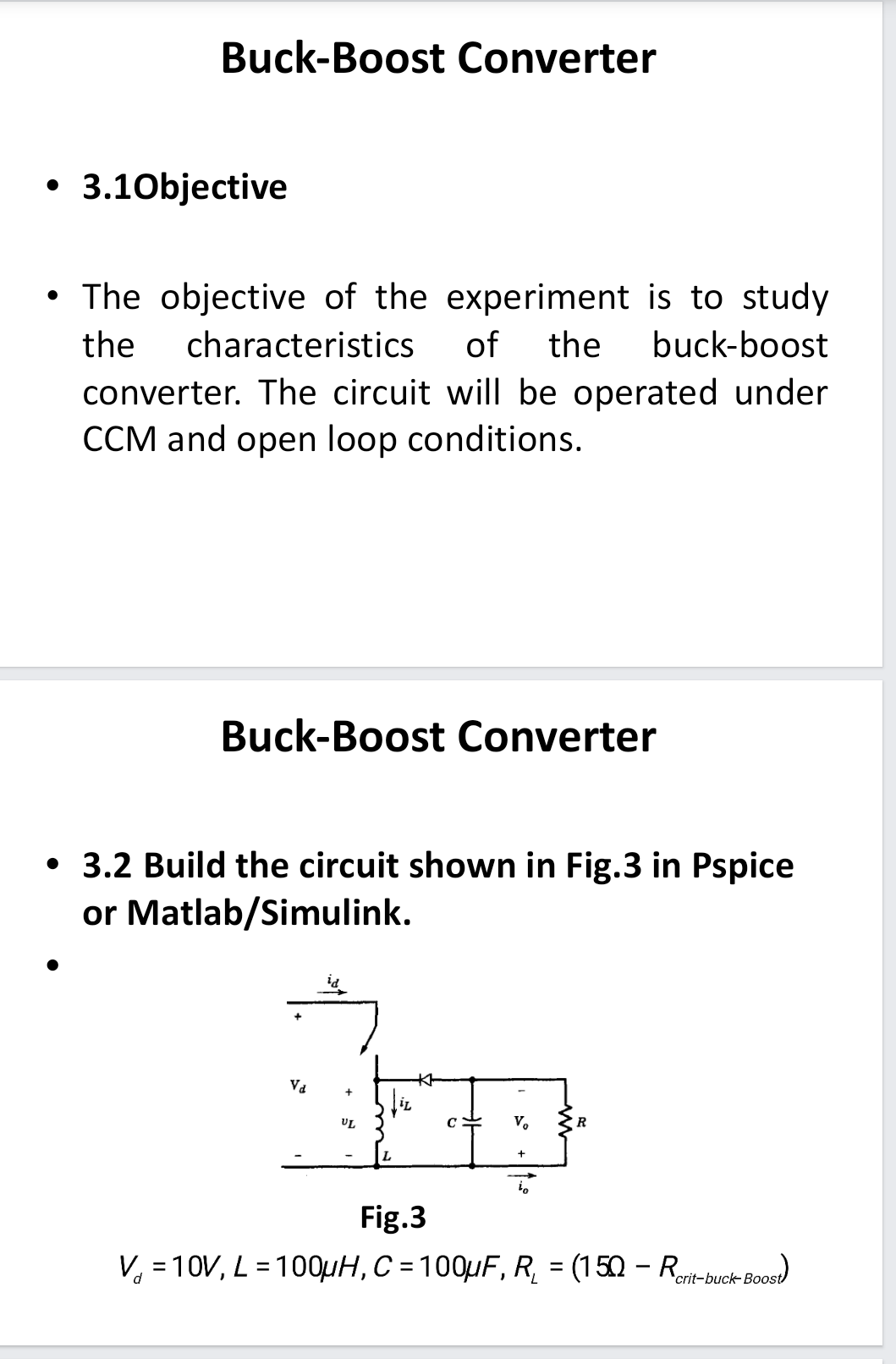

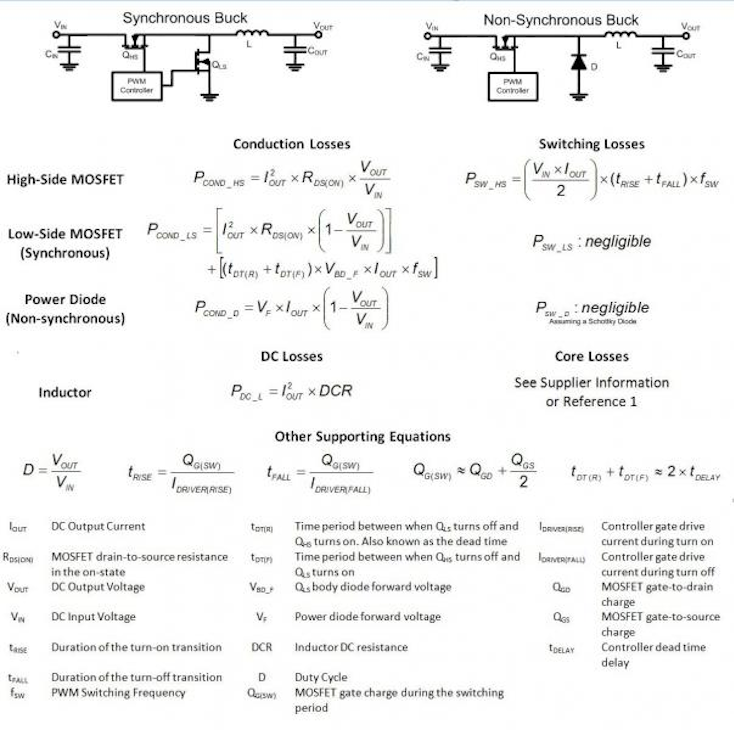

For either space constrained applications or higher power designs where ambient temperature are high accurately efficiency calculations are necessary. The simple approximation to efficiency can be made using a first-order model where the ideal duty cycle D VOUT VINVOUT and the average inductor current or input current IIN IIN IOUT1 D is used to estimate the dc losses in the NMOS switch the Schottky diode and the inductor. Analysis of Buck Converter Efficiency Abstract The synchronous buck circuit is wildly used to provide non-isolated power for low voltage and high current supply to system chip.

By analyzing the light-load efficiency of a synchronous buck operating under pulse frequency modulation control designers can predict efficiency over the converters full load range and maximize battery life in portable applications. 1Step-up converter Boost Regulator2Step-Down converter Buck regulator 3Inverter Flyback In this tutorial we will describe the Switching Buck Regulator circuitWe already described the Buck Regulator Design in the previous tutorial. Using the measured value at VO 5 V the efficiency was calculated at VO.

To realize the power loss of synchronous buck converter and to improve efficiency is important for power designer. Determine Buck Converter Efficiency in PFM Mode. Fundamentals of Buck Converter Efficiency.

Sorry but none of those parts on a Chinese buck converter even 100 real could handle it. This calculation gives a more realistic duty cycle than just the formula without the efficiency factor. To further improve their efficiency it is helpful to understand the basic mechanism of power loss.
